Telephone FM Transmitter

Descrition & Circuit

This project is taken from www.electronics-lab.com.
With some modification, I create my own version of FM Telephone bug complete with stripboard layout.
Theortically, the frequency range is from 88MHz to 94MHz but you may experiment with the coil structure to tune it

Circuit

Strip Board Layout


Parts List

Diode IN4384 4
LED 1
Resistor 12k 1
1k 1
200R 1
Capacitor 470p 1
330p 1
25p 1
12p 1
Transistor A933(PNP) 1
Coil *See note 1
*Coil note
7 or 8 turns of 22AWG(diameter .6mm) around 9/64inch(3.6mm) drill bit. Antenna using the same wire 22AWG, 5inch long

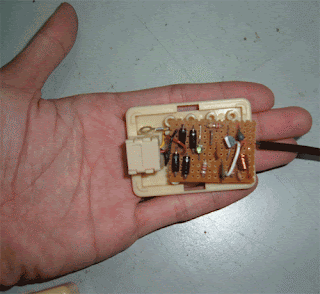

Compact!

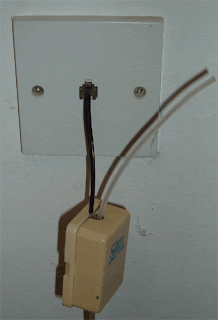

With antenna!

Put it online!

Get ready to tune your radio!
